目录

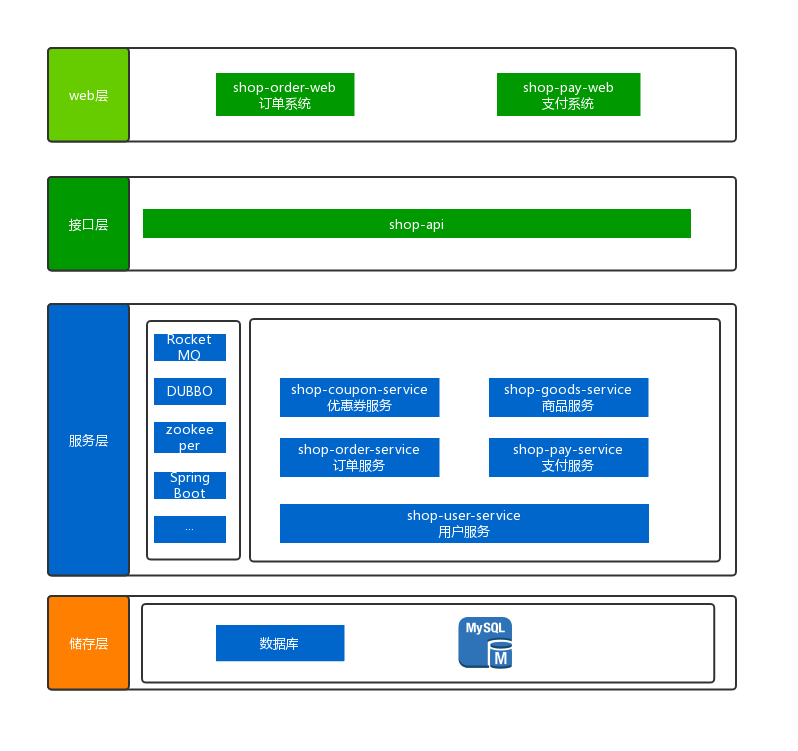

技术分析

# 1. 技术选型

  • SpringBoot
  • Dubbo
  • Zookeeper
  • RocketMQ
  • Mysql

# 2. SpringBoot整合RocketMQ

下载rocketmq-spring (opens new window)项目

将rocketmq-spring安装到本地仓库

mvn install -Dmaven.skip.test=true

# 2.1 消息生产者

# 1）添加依赖

<parent>
    <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-starter-parent</artifactId>
    <version>2.0.1.RELEASE</version>
</parent>

<properties>
    <rocketmq-spring-boot-starter-version>2.0.3</rocketmq-spring-boot-starter-version>
</properties>

<dependencies>
    <dependency>
        <groupId>org.apache.rocketmq</groupId>
        <artifactId>rocketmq-spring-boot-starter</artifactId>
        <version>${rocketmq-spring-boot-starter-version}</version>
    </dependency>
    <dependency>
        <groupId>org.projectlombok</groupId>
        <artifactId>lombok</artifactId>
        <version>1.18.6</version>
    </dependency>
    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-test</artifactId>
        <scope>test</scope>
    </dependency>

</dependencies>

# 2）配置文件

# application.properties
rocketmq.name-server=192.168.25.135:9876;192.168.25.138:9876
rocketmq.producer.group=my-group

# 3）启动类

@SpringBootApplication
public class MQProducerApplication {
    public static void main(String[] args) {
        SpringApplication.run(MQSpringBootApplication.class);
    }
}

# 4）测试类

@RunWith(SpringRunner.class)
@SpringBootTest(classes = {MQSpringBootApplication.class})
public class ProducerTest {

    @Autowired
    private RocketMQTemplate rocketMQTemplate;

    @Test
    public void test1(){
        rocketMQTemplate.convertAndSend("springboot-mq","hello springboot rocketmq");
    }
}

# 2.2 消息消费者

# 1）添加依赖

同消息生产者

# 2）配置文件

同消息生产者

# 3）启动类

@SpringBootApplication
public class MQConsumerApplication {
    public static void main(String[] args) {
        SpringApplication.run(MQSpringBootApplication.class);
    }
}

# 4）消息监听器

@Slf4j
@Component
@RocketMQMessageListener(topic = "springboot-mq",consumerGroup = "springboot-mq-consumer-1")
public class Consumer implements RocketMQListener<String> {

    @Override
    public void onMessage(String message) {
        log.info("Receive message："+message);
    }
}

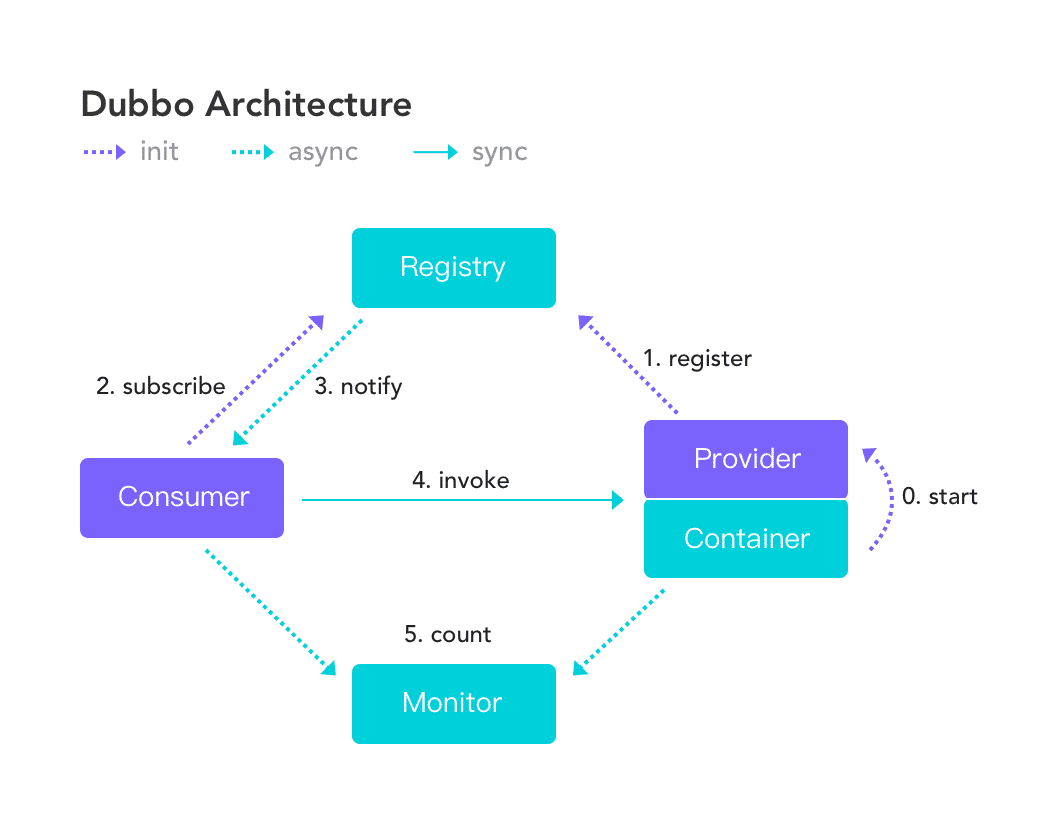

# 3. SpringBoot整合Dubbo

下载dubbo-spring-boot-starter (opens new window)依赖包

将dubbo-spring-boot-starter安装到本地仓库

mvn install -Dmaven.skip.test=true

# 3.1 搭建Zookeeper集群

# 1）准备工作

  1. 安装JDK
  2. 将Zookeeper上传到服务器
  3. 解压Zookeeper，并创建data目录，将conf下的zoo_sample.cfg文件改名为zoo.cfg
  4. 建立/user/local/zookeeper-cluster,将解压后的Zookeeper复制到以下三个目录
/usr/local/zookeeper-cluster/zookeeper-1
/usr/local/zookeeper-cluster/zookeeper-2
/usr/local/zookeeper-cluster/zookeeper-3

  1. 配置每一个 Zookeeper 的 dataDir（zoo.cfg） clientPort 分别为 2181 2182 2183

    修改/usr/local/zookeeper-cluster/zookeeper-1/conf/zoo.cfg

clientPort=2181
dataDir=/usr/local/zookeeper-cluster/zookeeper-1/data

​ 修改/usr/local/zookeeper-cluster/zookeeper-2/conf/zoo.cfg

clientPort=2182
dataDir=/usr/local/zookeeper-cluster/zookeeper-2/data

​ 修改/usr/local/zookeeper-cluster/zookeeper-3/conf/zoo.cfg

clientPort=2183
dataDir=/usr/local/zookeeper-cluster/zookeeper-3/data

# 2）配置集群

  1. 在每个 zookeeper 的 data 目录下创建一个 myid 文件，内容分别是 1、2、3 。这个文件就是记录每个服务器的 ID

  2. 在每一个 zookeeper 的 zoo.cfg 配置客户端访问端口（clientPort）和集群服务器 IP 列表。

    集群服务器 IP 列表如下

server.1=192.168.25.140:2881:3881
server.2=192.168.25.140:2882:3882
server.3=192.168.25.140:2883:3883

解释：server.服务器 ID=服务器 IP 地址：服务器之间通信端口：服务器之间投票选举端口

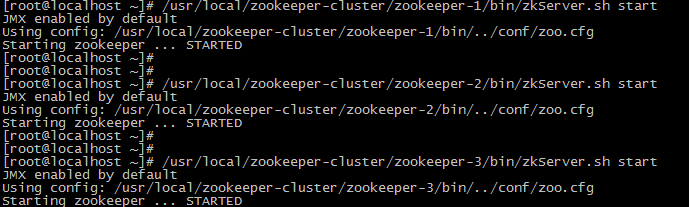

# 3）启动集群

启动集群就是分别启动每个实例。

# 3.2 RPC服务接口

public interface IUserService {
    public String sayHello(String name);
}

# 3.3 服务提供者

# 1）添加依赖

<parent>
    <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-starter-parent</artifactId>
    <version>2.0.1.RELEASE</version>
</parent>

<dependencies>
    <!--dubbo-->
    <dependency>
        <groupId>com.alibaba.spring.boot</groupId>
        <artifactId>dubbo-spring-boot-starter</artifactId>
        <version>2.0.0</version>
    </dependency>
	<!--spring-boot-stater-->
    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter</artifactId>
        <exclusions>
            <exclusion>
                <artifactId>log4j-to-slf4j</artifactId>
                <groupId>org.apache.logging.log4j</groupId>
            </exclusion>
        </exclusions>
    </dependency>
	<!--zookeeper-->
    <dependency>
        <groupId>org.apache.zookeeper</groupId>
        <artifactId>zookeeper</artifactId>
        <version>3.4.10</version>
        <exclusions>
            <exclusion>
                <groupId>org.slf4j</groupId>
                <artifactId>slf4j-log4j12</artifactId>
            </exclusion>
            <exclusion>
                <groupId>log4j</groupId>
                <artifactId>log4j</artifactId>
            </exclusion>
        </exclusions>
    </dependency>

    <dependency>
        <groupId>com.101tec</groupId>
        <artifactId>zkclient</artifactId>
        <version>0.9</version>
        <exclusions>
            <exclusion>
                <artifactId>slf4j-log4j12</artifactId>
                <groupId>org.slf4j</groupId>
            </exclusion>
        </exclusions>
    </dependency>
	<!--API-->
    <dependency>
        <groupId>com.itheima.demo</groupId>
        <artifactId>dubbo-api</artifactId>
        <version>1.0-SNAPSHOT</version>
    </dependency>

</dependencies>

# 2）配置文件

# application.properties
spring.application.name=dubbo-demo-provider
spring.dubbo.application.id=dubbo-demo-provider
spring.dubbo.application.name=dubbo-demo-provider
spring.dubbo.registry.address=zookeeper://192.168.25.140:2181;zookeeper://192.168.25.140:2182;zookeeper://192.168.25.140:2183
spring.dubbo.server=true
spring.dubbo.protocol.name=dubbo
spring.dubbo.protocol.port=20880

# 3）启动类

@EnableDubboConfiguration
@SpringBootApplication
public class ProviderBootstrap {

    public static void main(String[] args) throws IOException {
        SpringApplication.run(ProviderBootstrap.class,args);
    }

}

# 4）服务实现

@Component
@Service(interfaceClass = IUserService.class)
public class UserServiceImpl implements IUserService{
    @Override
    public String sayHello(String name) {
        return "hello:"+name;
    }
}

# 3.4 服务消费者

# 1）添加依赖

<parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>2.0.1.RELEASE</version>
    </parent>

<dependencies>

    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-web</artifactId>
    </dependency>

    <!--dubbo-->
    <dependency>
        <groupId>com.alibaba.spring.boot</groupId>
        <artifactId>dubbo-spring-boot-starter</artifactId>
        <version>2.0.0</version>
    </dependency>

    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter</artifactId>
        <exclusions>
            <exclusion>
                <artifactId>log4j-to-slf4j</artifactId>
                <groupId>org.apache.logging.log4j</groupId>
            </exclusion>
        </exclusions>
    </dependency>

    <!--zookeeper-->
    <dependency>
        <groupId>org.apache.zookeeper</groupId>
        <artifactId>zookeeper</artifactId>
        <version>3.4.10</version>
        <exclusions>
            <exclusion>
                <groupId>org.slf4j</groupId>
                <artifactId>slf4j-log4j12</artifactId>
            </exclusion>
            <exclusion>
                <groupId>log4j</groupId>
                <artifactId>log4j</artifactId>
            </exclusion>
        </exclusions>
    </dependency>

    <dependency>
        <groupId>com.101tec</groupId>
        <artifactId>zkclient</artifactId>
        <version>0.9</version>
        <exclusions>
            <exclusion>
                <artifactId>slf4j-log4j12</artifactId>
                <groupId>org.slf4j</groupId>
            </exclusion>
        </exclusions>
    </dependency>

    <!--API-->
    <dependency>
        <groupId>com.itheima.demo</groupId>
        <artifactId>dubbo-api</artifactId>
        <version>1.0-SNAPSHOT</version>
    </dependency>

</dependencies>

# 2）配置文件

# application.properties
spring.application.name=dubbo-demo-consumer
spring.dubbo.application.name=dubbo-demo-consumer
spring.dubbo.application.id=dubbo-demo-consumer
    spring.dubbo.registry.address=zookeeper://192.168.25.140:2181;zookeeper://192.168.25.140:2182;zookeeper://192.168.25.140:2183

# 3）启动类

@EnableDubboConfiguration
@SpringBootApplication
public class ConsumerBootstrap {
    public static void main(String[] args) {
        SpringApplication.run(ConsumerBootstrap.class);
    }
}

# 4）Controller

@RestController
@RequestMapping("/user")
public class UserController {

    @Reference
    private IUserService userService;

    @RequestMapping("/sayHello")
    public String sayHello(String name){
        return userService.sayHello(name);
    }

}
上次更新: 2024/09/26, 16:52:11
