《Java常用框架》笔记
Shiro

分布式统一权限系统

# 1、系统需求

# 【1】前后端分离

在第十章中我们已经实现，使用jwt的令牌实现，重写DefaultWebSessionManager,从ServletRequest获得jwtToken作为会话sessionId

package com.itheima.shiro.core.impl;

import com.itheima.shiro.utils.EmptyUtil;
import io.jsonwebtoken.Claims;
import org.apache.shiro.web.servlet.ShiroHttpServletRequest;
import org.apache.shiro.web.session.mgt.DefaultWebSessionManager;
import org.apache.shiro.web.util.WebUtils;
import org.springframework.beans.factory.annotation.Autowired;

import javax.servlet.ServletRequest;
import javax.servlet.ServletResponse;
import java.io.Serializable;

/**
 * @Description 重写Jwt会话管理
 */

public class ShiroSessionManager extends DefaultWebSessionManager {

	private static final String AUTHORIZATION = "jwtToken";

    private static final String REFERENCED_SESSION_ID_SOURCE = "Stateless request";

    public ShiroSessionManager(){
        super();
    }

    @Autowired
    JwtTokenManager jwtTokenManager;

    @Override
    protected Serializable getSessionId(ServletRequest request, ServletResponse response){
        String jwtToken = WebUtils.toHttp(request).getHeader(AUTHORIZATION);
        if(EmptyUtil.isNullOrEmpty(jwtToken)){
            //如果没有携带id参数则按照父类的方式在cookie进行获取
            return super.getSessionId(request, response);
        }else{
            //如果请求头中有 authToken 则其值为jwtToken，然后解析出会话session
        	request.setAttribute(ShiroHttpServletRequest.REFERENCED_SESSION_ID_SOURCE,REFERENCED_SESSION_ID_SOURCE);
            Claims decode = jwtTokenManager.decodeToken(jwtToken);
            String id = (String) decode.get("jti");
            request.setAttribute(ShiroHttpServletRequest.REFERENCED_SESSION_ID,id);
            request.setAttribute(ShiroHttpServletRequest.REFERENCED_SESSION_ID_IS_VALID,Boolean.TRUE);
            return id;
        }
    }

}

# 【2】集中式会话

在第七章中RedisSessionDao继承AbstractSessionDAO，重写了会话的创建、读取、修改等操作，全部缓存于redis中

package com.itheima.shiro.core.impl;

import com.itheima.shiro.constant.CacheConstant;
import com.itheima.shiro.utils.ShiroRedissionSerialize;
import lombok.extern.log4j.Log4j2;
import org.apache.shiro.session.Session;
import org.apache.shiro.session.mgt.eis.AbstractSessionDAO;
import org.redisson.api.RBucket;
import org.redisson.api.RedissonClient;

import javax.annotation.Resource;
import java.io.Serializable;
import java.util.Collection;
import java.util.Collections;
import java.util.concurrent.TimeUnit;

/**
 * @Description 实现shiro session的memcached集中式管理~
 */
@Log4j2
public class RedisSessionDao extends AbstractSessionDAO {

	@Resource(name = "redissonClientForShiro")
	RedissonClient redissonClient;

	private Long globalSessionTimeout;

	@Override
	protected Serializable doCreate(Session session) {
		Serializable sessionId = generateSessionId(session);
		assignSessionId(session, sessionId);
//		log.info("=============创建sessionId:{}",sessionId);
		RBucket<String> sessionIdRBucket = redissonClient.getBucket(CacheConstant.GROUP_CAS+sessionId.toString());
		sessionIdRBucket.trySet(ShiroRedissionSerialize.serialize(session), globalSessionTimeout, TimeUnit.SECONDS);
		return sessionId;
	}

	@Override
	protected Session doReadSession(Serializable sessionId) {
		RBucket<String> sessionIdRBucket = redissonClient.getBucket(CacheConstant.GROUP_CAS+sessionId.toString());
		Session session = (Session) ShiroRedissionSerialize.deserialize(sessionIdRBucket.get());
//		log.info("=============读取sessionId:{}",session.getId().toString());
		return session;
	}

	@Override
	public void delete(Session session) {
//		log.info("=============删除sessionId:{}",session.getId().toString());
		RBucket<String> sessionIdRBucket = redissonClient.getBucket(CacheConstant.GROUP_CAS+session.getId().toString());
		sessionIdRBucket.delete();
	}

	@Override
	public Collection<Session> getActiveSessions() {
		return Collections.emptySet();
	}

	@Override
	public void update(Session session) {
		RBucket<String> sessionIdRBucket = redissonClient.getBucket(CacheConstant.GROUP_CAS+session.getId().toString());
		sessionIdRBucket.set(ShiroRedissionSerialize.serialize(session), globalSessionTimeout, TimeUnit.SECONDS);
//		log.info("=============修改sessionId:{}",session.getId().toString());
	}

	public void setGlobalSessionTimeout(Long globalSessionTimeout) {
		this.globalSessionTimeout = globalSessionTimeout;
	}
}

# 【3】认证与鉴权服务化

第六章中，我们实现了realm的缓存机制，这里我们会把UserBridgeService使用dubbo服务化

其目的使得实际项目中的认证与鉴权走dubbo，减少服务器压力

# 【4】动态过滤器链

在第十章中，我们加载过滤器链的方式

#静态资源不过滤
/static/**=anon
#登录链接不过滤
/login/**=anon
#访问/resource/**需要有admin的角色
#/resource/**=role-or[MangerRole,SuperAdmin]
#/role/** =jwt-roles[SuperAdmin]
/resource/** =jwt-perms[role:listInitialize]
#其他链接是需要登录的
/**=kicked-out,jwt-authc

在统一鉴权系统中，我们不可能每次发布新的过滤器链，就去重启服务器，我们更希望可以动态管理过滤器链

# 【5】权限客户端

shiro-client作为jar的依赖，满足以下需求：

1、非侵入式：使用者只需要对jar依赖和做少量的配置，就可以达到统一鉴权的目标

2、可扩展性：用户除使用提供的过滤器外，可以轻松安自己的业务去定义过滤器

3、集中式管理：依赖jar之后，shiro-mgt后台可以同时管控多个平台的权限的认证、鉴权、及动态配置过滤器链

# 【6】网关平台

springboot-shiro-gateway:

1、依赖shiro-client项目作为权限的被控制层

2、实现dubbo传输协议到HTTP传输协议的转化，当然这里提供的为通用的转换方式。

3、可复制、复制后只需要在shiro-mgt后台中做简单的配置，就可以实现一个新网关的接入

# 2、架构设计

# 【1】系统网络通讯

1582876876486

1、网关服务集群性，同时实现会话的统一管理

2、鉴权服务集群化，提供统一鉴权服务

3、管理后台集群化

# 【2】模块依赖关系

# 【1.1】springboot-shiro-parent

springboot-shiro-parent:项目统一jar和plugIn的POM定义

1582880473745

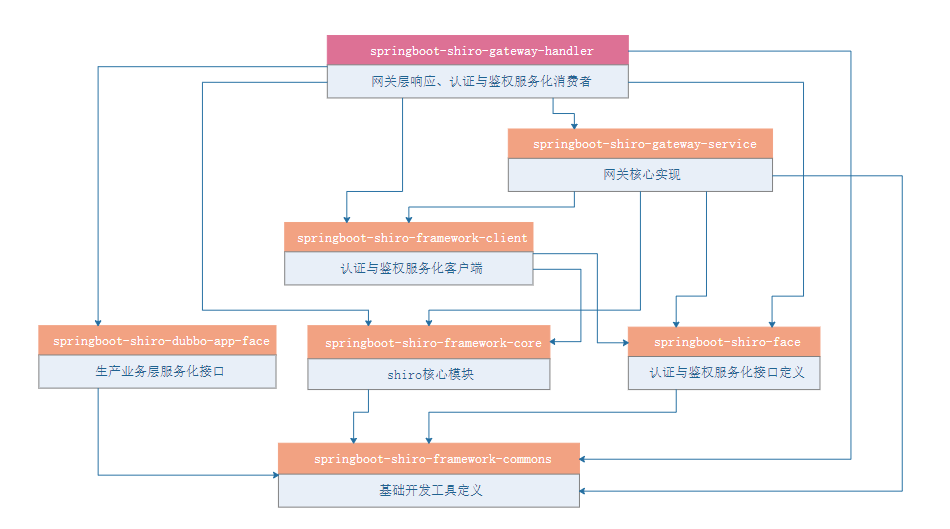

# 【1.2】springboot-shiro-gateway-handler

	1、dubbo业务服务转换http通讯

	2、认证与鉴权服务化消费者

	3、生成业务服务化消费者

1582880165581

# 【1.3】springboot-shiro-producer

	认证与鉴权服务化的生成者

1582710657210

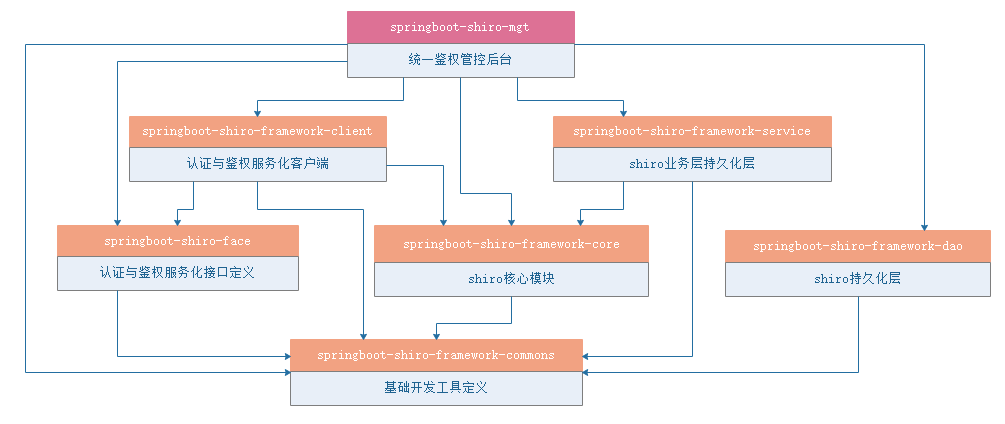

# 【1.4】springboot-shiro-mgt

	认证与鉴权服务化消费者

1582881763304

# 【1.5】springboot-shiro-dubbo-app-handler

	生产业务服务化生产者

1582711000178

# 3、认证鉴权服务化

1585539347157

上面的图解中我们可以看到，这里服务化的为UserAdapterFace

模块springboot-shiro-face中的接口定义UserAdapterFace

package com.itheima.shiro.face;

import com.itheima.shiro.vo.ResourceVo;
import com.itheima.shiro.vo.RoleVo;
import com.itheima.shiro.vo.UserVo;

import java.util.List;

/**
 * @Description：用户服务接口定义
 */
public interface UserAdapterFace {

    /**
     * @Description 按用户名查找用户
     * @param loginName 登录名
     * @return
     */
    UserVo findUserByLoginName(String loginName);

    /**
     * @Description 查找用户所有角色
     * @param userId 用户Id
     * @return
     */
    List<RoleVo> findRoleByUserId(String userId);

    /**
     * @Description 查询用户有那些资源
     * @param userId 用户Id
     * @return
     */
    List<ResourceVo> findResourceByUserId(String userId);

}

springboot-shiro-producer模块中的生产者UserAdapterFaceImpl

package com.itheima.shiro.faceImpl;

import com.itheima.shiro.adapter.UserAdapter;
import com.itheima.shiro.face.UserAdapterFace;
import com.itheima.shiro.pojo.Resource;
import com.itheima.shiro.pojo.Role;
import com.itheima.shiro.pojo.User;
import com.itheima.shiro.utils.BeanConv;
import com.itheima.shiro.utils.EmptyUtil;
import com.itheima.shiro.vo.ResourceVo;
import com.itheima.shiro.vo.RoleVo;
import com.itheima.shiro.vo.UserVo;
import org.apache.dubbo.config.annotation.Service;
import org.springframework.beans.factory.annotation.Autowired;

import java.util.List;

/**
 * @Description：
 */
@Service(version = "1.0.0", retries = 3,timeout = 5000)
public class UserAdapterFaceImpl implements UserAdapterFace {

    @Autowired
    UserAdapter userAdapter;


    @Override
    public UserVo findUserByLoginName(String loginName) {
        User user = userAdapter.findUserByLoginName(loginName);
        if (!EmptyUtil.isNullOrEmpty(user)){
            return BeanConv.toBean(user,UserVo.class);
        }
        return null;
    }

    @Override
    public List<RoleVo> findRoleByUserId(String userId) {
        List<Role> list = userAdapter.findRoleByUserId(userId);
        if (!EmptyUtil.isNullOrEmpty(list)){
            return BeanConv.toBeanList(list, RoleVo.class);
        }
        return null;
    }

    @Override
    public List<ResourceVo> findResourceByUserId(String userId) {
        List<Resource> list = userAdapter.findResourceByUserId(userId);
        if (!EmptyUtil.isNullOrEmpty(list)){
            return BeanConv.toBeanList(list, ResourceVo.class);
        }
        return null;
    }
}

springboot-shiro-handler模块下的消费者UserBridgeServiceImpl

package com.itheima.shiro.client;

import com.itheima.shiro.constant.CacheConstant;
import com.itheima.shiro.core.SimpleCacheManager;
import com.itheima.shiro.core.base.ShiroUser;
import com.itheima.shiro.core.base.SimpleMapCache;
import com.itheima.shiro.core.base.SimpleToken;
import com.itheima.shiro.core.bridge.UserBridgeService;
import com.itheima.shiro.face.UserAdapterFace;
import com.itheima.shiro.utils.BeanConv;
import com.itheima.shiro.utils.EmptyUtil;
import com.itheima.shiro.utils.ShiroUserUtil;
import com.itheima.shiro.vo.ResourceVo;
import com.itheima.shiro.vo.RoleVo;
import com.itheima.shiro.vo.UserVo;
import lombok.extern.slf4j.Slf4j;
import org.apache.dubbo.config.annotation.Reference;
import org.apache.shiro.authc.AuthenticationInfo;
import org.apache.shiro.authc.AuthenticationToken;
import org.apache.shiro.authc.SimpleAuthenticationInfo;
import org.apache.shiro.authc.UnknownAccountException;
import org.apache.shiro.authz.SimpleAuthorizationInfo;
import org.apache.shiro.util.ByteSource;
import org.redisson.api.RBucket;
import org.redisson.api.RedissonClient;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Component;

import java.util.ArrayList;
import java.util.HashMap;
import java.util.List;
import java.util.Map;
import java.util.concurrent.TimeUnit;


/**
 * @Description 权限桥接器
 */
@Slf4j
@Component("userBridgeService")
public class UserBridgeServiceImpl implements UserBridgeService {

    @Reference(version = "1.0.0")
    private UserAdapterFace userAdapterFace;

    @Autowired
    private SimpleCacheManager simpleCacheManager;

    @javax.annotation.Resource(name = "redissonClientForShiro")
    private RedissonClient redissonClient;

    public AuthenticationInfo doGetAuthenticationInfo(AuthenticationToken authcToken,String realmName) {
        SimpleToken token = (SimpleToken)authcToken;
        UserVo user  = this.findUserByLoginName(token.getUsername());
        if(EmptyUtil.isNullOrEmpty(user)){
            throw new UnknownAccountException("账号不存在");
        }
        ShiroUser shiroUser = BeanConv.toBean(user, ShiroUser.class);
        String sessionId = ShiroUserUtil.getShiroSessionId();
        String cacheKeyResourcesIds = CacheConstant.RESOURCES_KEY_IDS+sessionId;
        shiroUser.setResourceIds(this.findResourcesIdsList(cacheKeyResourcesIds,user.getId()));
        String salt = user.getSalt();
        String password = user.getPassWord();
        return new SimpleAuthenticationInfo(shiroUser, password, ByteSource.Util.bytes(salt), realmName);
    }

    @Override
    public SimpleAuthorizationInfo getAuthorizationInfo(ShiroUser shiroUser) {
        UserVo user = BeanConv.toBean(shiroUser, UserVo.class);
        SimpleAuthorizationInfo info = new SimpleAuthorizationInfo();
        String sessionId = ShiroUserUtil.getShiroSessionId();
        //查询用户拥有的角色
        String cacheKeyRole = CacheConstant.ROLE_KEY + sessionId;
        info.addRoles(this.findRoleList(cacheKeyRole, user.getId()));

        //查询用户拥有的资源
        String cacheKeyResources = CacheConstant.RESOURCES_KEY + sessionId;
        info.addStringPermissions(this.findResourcesList(cacheKeyResources, user.getId()));
        return info;
    }


    @Override
    public List<String> findRoleList(String cacheKeyRole, String userId) {
        List<RoleVo> roles = new ArrayList<RoleVo>();
        if (simpleCacheManager.getCache(cacheKeyRole) != null) {
            roles = (List<RoleVo>) simpleCacheManager.getCache(cacheKeyRole).get(cacheKeyRole);
        } else {
            roles = userAdapterFace.findRoleByUserId(userId);
            if (roles.size() > 0) {
                //用户角色存放到map
                Map<Object, Object> mapRole = new HashMap<Object, Object>();
                mapRole.put(cacheKeyRole, roles);
                //新建SimpleMapCache实例并放入缓存管理器
                SimpleMapCache cacheRole = new SimpleMapCache(cacheKeyRole, mapRole);
                simpleCacheManager.createCache(cacheKeyRole, cacheRole);
            }
        }
        List<String> rolesLabel = new ArrayList<String>();
        for (RoleVo role : roles) {
            rolesLabel.add(role.getLabel());
        }
        return rolesLabel;
    }


    @Override
    public List<String> findResourcesList(String cacheKeyResources,String userId) {
        List<ResourceVo> resourcesList = new ArrayList<ResourceVo>();
        if (simpleCacheManager.getCache(cacheKeyResources) != null) {
            resourcesList = (List<ResourceVo>) simpleCacheManager.getCache(cacheKeyResources).get(cacheKeyResources);
        } else {
            resourcesList = userAdapterFace.findResourceByUserId(userId);
            if (resourcesList.size() > 0) {
                //用户资源存放到map
                Map<Object, Object> mapResource = new HashMap<Object, Object>();
                mapResource.put(cacheKeyResources, resourcesList);
                //新建SimpleMapCache实例并放入缓存管理器
                SimpleMapCache cacheResource = new SimpleMapCache(cacheKeyResources, mapResource);
                simpleCacheManager.createCache(cacheKeyResources, cacheResource);
            }
        }
        List<String> resourcesLabel = new ArrayList<String>();
        for (ResourceVo resources : resourcesList) {
            resourcesLabel.add(resources.getLabel());
        }
        return resourcesLabel;
    }


    @Override
    public UserVo findUserByLoginName(String loginName) {
        String key = CacheConstant.FIND_USER_BY_LOGINNAME+loginName;
        RBucket<UserVo> rBucket = redissonClient.getBucket(key);
        UserVo user = rBucket.get();
        if (!EmptyUtil.isNullOrEmpty(user)) {
            return user;
        }else {
            user = userAdapterFace.findUserByLoginName(loginName);
            if (!EmptyUtil.isNullOrEmpty(user)) {
                rBucket.set(user, 300, TimeUnit.SECONDS);
                return user;
            }
        }
        rBucket.set(new UserVo(), 3, TimeUnit.SECONDS);
        return null;
    }

    @Override
    public List<String> findResourcesIdsList(String cacheKeyResources,String userId) {
        List<ResourceVo> resourcesList = new ArrayList<ResourceVo>();
        if (simpleCacheManager.getCache(cacheKeyResources) != null) {
            resourcesList = (List<ResourceVo>) simpleCacheManager.getCache(cacheKeyResources).get(cacheKeyResources);
        } else {
            resourcesList = userAdapterFace.findResourceByUserId(userId);
            if (resourcesList.size() > 0) {
                //用户资源存放到map
                Map<Object, Object> mapResource = new HashMap<Object, Object>();
                mapResource.put(cacheKeyResources, resourcesList);
                //新建SimpleMapCache实例并放入缓存管理器
                SimpleMapCache cacheResource = new SimpleMapCache(cacheKeyResources, mapResource);
                simpleCacheManager.createCache(cacheKeyResources, cacheResource);
            }
        }
        List<String> resourcesLabel = new ArrayList<String>();
        for (ResourceVo resources : resourcesList) {
            resourcesLabel.add(resources.getId());
        }
        return resourcesLabel;
    }

    @Override
    public void loadUserAuthorityToCache(ShiroUser user) {
        String sessionId = user.getSessionId();
        List<RoleVo> roles = userAdapterFace.findRoleByUserId(user.getId());
        //创建角色cachaeKey
        String cacheKeyRole = CacheConstant.ROLE_KEY + sessionId;
        //用户角色存放到map
        Map<Object, Object> mapRole = new HashMap<Object, Object>();
        mapRole.put(cacheKeyRole, roles);
        //新建SimpleMapCache实例并放入缓存管理器
        SimpleMapCache cacheRole = new SimpleMapCache(cacheKeyRole, mapRole);
        simpleCacheManager.createCache(cacheKeyRole, cacheRole);

        List<ResourceVo> resourcesList = userAdapterFace.findResourceByUserId(user.getId());
        if (resourcesList.size() > 0) {
            //创建资源cachaeKey
            String cacheKeyResources = CacheConstant.RESOURCES_KEY + sessionId;
            //用户资源存放到map
            Map<Object, Object> mapResource = new HashMap<Object, Object>();
            mapResource.put(cacheKeyResources, resourcesList);
            //新建SimpleMapCache实例并放入缓存管理器
            SimpleMapCache cacheResource = new SimpleMapCache(cacheKeyResources, mapResource);
            simpleCacheManager.createCache(cacheKeyResources, cacheResource);
        }
    }
}

通过上面的改造，我们可以发现：用户在认证与鉴权时走的都是dubbo的服务，而在实际业务项目中不会再去操作鉴权相关的内容

# 4、动态过滤器链

在第十章中，我们加载过滤器链的方式

#静态资源不过滤
/static/**=anon
#登录链接不过滤
/login/**=anon
#访问/resource/**需要有admin的角色
#/resource/**=roleOr[MangerRole,SuperAdmin]
#/role/** =jwt-roles[SuperAdmin]
/resource/** =jwt-perms[role:listInitialize]
#其他链接是需要登录的
/**=kicked-out,jwt-authc

在统计鉴权系统中，我们不可能每次发布新的过滤器链，就去重启服务器，我们更希望可以动态管理过滤器链

# 【1】需求分析

实现动态过滤器链，我们需要保证以下几个特性：

1、持久化：原有的properties内容放入数据库，

2、有序性：因过滤器链有序加载的特性，读取过滤器链的时保证其有序性

3、服务化：过滤器链的服务做成dubbo服务，做到集中式管理

4、同步性：不同业务系统对于过滤器链的加载需要同步

5、热加载：过滤器链修改之后，各个业务系统不需要重启服务，以达到热加载的目的

1582619578346

# 【2】代码实现

# 【2.1】持久化、有序化

1582683705723

主要是对FilterChain类的CRUD这里就不做赘述，需要注意的是排序：升序排列，以保障过滤器链的有序加载

# 【2.2】服务化

服务化过滤器链加载

FilterChainFace:过滤器链桥接器dubbo接口层
FilterChainFaceImpl:过滤器链桥接器dubbo接口层实现

FilterChainFace接口

package com.itheima.shiro.face;

import com.itheima.shiro.vo.FilterChainVo;

import java.util.List;

/**
 * @Description：过滤器查询接口
 */
public interface FilterChainFace {

    public List<FilterChainVo> findFilterChainList();
}

FilterChainFaceImpl

package com.itheima.shiro.faceImpl;

import com.itheima.shiro.face.FilterChainFace;
import com.itheima.shiro.pojo.FilterChain;
import com.itheima.shiro.service.FilterChainService;
import com.itheima.shiro.utils.BeanConv;
import com.itheima.shiro.utils.EmptyUtil;
import com.itheima.shiro.vo.FilterChainVo;
import org.apache.dubbo.config.annotation.Service;
import org.springframework.beans.factory.annotation.Autowired;

import java.util.List;

/**
 * @Description：
 */
@Service(version = "1.0.0", retries = 3,timeout = 5000)
public class FilterChainFaceImpl implements FilterChainFace {

    @Autowired
    FilterChainService filterChainService;

    @Override
    public List<FilterChainVo> findFilterChainList() {
        List<FilterChain> filterChainList = filterChainService.findFilterChainList();
        if (!EmptyUtil.isNullOrEmpty(filterChainList)){
            return BeanConv.toBeanList(filterChainList, FilterChainVo.class);
        }
        return null;
    }
}

这里只是简单的dubbo服务，也不做赘述

# 【2.3】同步性

定义启动加载过滤器链服务同步：

FilterChainBridgeService:过滤器链桥接器service接口层
FilterChainBridgeServiceImpl:过滤器链桥接器service接口层实现

ShiroFilerChainService:shiro过滤器链服务加载接口
ShiroFilerChainService:shiro过滤器链服务加载接口实现

FilterChainBridgeService

package com.itheima.shiro.core.bridge;

import com.itheima.shiro.vo.FilterChainVo;

import java.lang.reflect.InvocationTargetException;
import java.util.List;

/**
 * @Description 过滤器链service接口层
 */
public interface FilterChainBridgeService {

    /**
     * @Description 查询所有有效的过滤器链
     * @return
     */
    List<FilterChainVo> findFilterChainList();



}

FilterChainBridgeServiceImpl

package com.itheima.shiro.client;

import com.itheima.shiro.core.bridge.FilterChainBridgeService;
import com.itheima.shiro.face.FilterChainFace;
import com.itheima.shiro.vo.FilterChainVo;
import org.apache.dubbo.config.annotation.Reference;
import org.springframework.stereotype.Component;

import java.util.List;

/**
 * @Description：
 */
@Component("filterChainBridgeService")
public class FilterChainBridgeServiceImpl implements FilterChainBridgeService {

    @Reference(version = "1.0.0")
    private FilterChainFace filterChainFace;

    @Override
    public List<FilterChainVo> findFilterChainList() {

        return filterChainFace.findFilterChainList();
    }
}

ShiroFilerChainService过滤器链同步接口

package com.itheima.shiro.service;

import com.itheima.shiro.vo.FilterChainVo;

import javax.annotation.PostConstruct;
import java.util.List;

/**
 * @Description：过滤器链同步接口
 */
public interface ShiroFilerChainService {

    /**
     * @Description 启动时加载数据库中的过滤器链
     */
    void init();

    /**
     * @Description 初始化过滤器链
     * @param
     * @return
     */
    void initFilterChains(List<FilterChainVo> FilterChainVos);
}

ShiroFilerChainServiceImpl过滤器链同步接口实现

package com.itheima.shiro.service.impl;

import com.itheima.shiro.core.impl.CustomDefaultFilterChainManager;
import com.itheima.shiro.service.ShiroFilerChainService;
import com.itheima.shiro.core.bridge.FilterChainBridgeService;
import com.itheima.shiro.vo.FilterChainVo;
import lombok.extern.log4j.Log4j2;
import org.apache.shiro.web.filter.mgt.DefaultFilterChainManager;
import org.apache.shiro.web.filter.mgt.NamedFilterList;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;

import javax.annotation.PostConstruct;
import java.util.LinkedHashMap;
import java.util.List;
import java.util.Map;
import java.util.concurrent.Executors;
import java.util.concurrent.ScheduledExecutorService;
import java.util.concurrent.TimeUnit;

/**
 * @Description：过滤器链同步接口实现
 */
@Service("shiroFilerChainManager")
@Log4j2
public class ShiroFilerChainServiceImpl implements ShiroFilerChainService {

    //此时注入的为CustomDefaultFilterChainManager
    @Autowired
    private CustomDefaultFilterChainManager filterChainManager;

    @Autowired
    FilterChainBridgeService filterChainBridgeService;

    private Map<String, NamedFilterList> defaultFilterChains;

    private ScheduledExecutorService executor = Executors.newScheduledThreadPool(1);

    /**
     * @Description 启动定时器，间隔2分钟同步数据库的过滤器链
     */
    @Override
    @PostConstruct
    public void init() {
        defaultFilterChains = new LinkedHashMap<>();
        executor.scheduleAtFixedRate(new Runnable() {
            @Override
            public void run() {
                try {
                    initFilterChains(filterChainBridgeService.findFilterChainList());
                } catch (Exception e) {
                    log.error(e.getMessage(), e);
                }
            }
        }, 0, 120, TimeUnit.SECONDS);

    }

    @Override
    public void initFilterChains(List<FilterChainVo> FilterChainVos) {

        //1、首先删除以前老的filter chain并注册默认的
        filterChainManager.getFilterChains().clear();

        //2、循环URL Filter 注册filter chain
        for (FilterChainVo urlFilterVo : FilterChainVos) {
            String url = urlFilterVo.getUrl();
            String filterName = urlFilterVo.getFilterName();
            String[] filterNames = filterName.split(",");
            for (String name : filterNames) {
                //注册所有filter，包含自定义的过滤器
                switch(name){
                    case "anon":
                        filterChainManager.addToChain(url, name);
                        break;
                    case "authc":
                        filterChainManager.addToChain(url, name);
                        break;
                    case "roles":
                        filterChainManager.addToChain(url, name, urlFilterVo.getRoles());
                        break;
                    case "perms":
                        filterChainManager.addToChain(url, name,urlFilterVo.getPermissions());
                        break;
                    case "role-or":
                        filterChainManager.addToChain(url, name,urlFilterVo.getRoles());
                        break;
                    case "kicked-out":
                        filterChainManager.addToChain(url, name);
                        break;
                    case "jwt-authc":
                        filterChainManager.addToChain(url, name);
                        break;
                    case "jwt-roles":
                        filterChainManager.addToChain(url, name, urlFilterVo.getRoles());
                        break;
                    case "jwt-perms":
                        filterChainManager.addToChain(url, name,urlFilterVo.getPermissions());
                        break;
                    default:
                        break;
                }
            }
        }
    }
}

# 【2.4】热加载

为了实现热加载我们需要定义以下3个类

CustomDefaultFilterChainManager:自定义的默认过滤器链管理者
CustomPathMatchingFilterChainResolver:自定义的路径匹配过滤器链解析器
CustomShiroFilterFactoryBean:自定义shiro过滤器工厂bean

# 【2.4.1】CustomDefaultFilterChainManager

1582685943872

咱们来看下顶级接口FilterChainManager

package com.itheima.shiro.core.impl;

import org.apache.shiro.config.Ini;
import org.apache.shiro.util.CollectionUtils;
import org.apache.shiro.util.Nameable;
import org.apache.shiro.util.StringUtils;
import org.apache.shiro.web.config.IniFilterChainResolverFactory;
import org.apache.shiro.web.filter.AccessControlFilter;
import org.apache.shiro.web.filter.authc.AuthenticationFilter;
import org.apache.shiro.web.filter.authz.AuthorizationFilter;
import org.apache.shiro.web.filter.mgt.DefaultFilterChainManager;
import org.apache.shiro.web.filter.mgt.NamedFilterList;
import org.apache.shiro.web.filter.mgt.SimpleNamedFilterList;

import javax.annotation.PostConstruct;
import javax.servlet.Filter;
import javax.servlet.FilterChain;
import java.util.LinkedHashMap;
import java.util.List;
import java.util.Map;

/**
 * @Description：自定义默认过滤器管理者
 */
public class CustomDefaultFilterChainManager extends DefaultFilterChainManager {

    //登录地址
    private String loginUrl;

    //登录成功后默认跳转地址
    private String successUrl;

    //未授权跳转地址
    private String unauthorizedUrl;

    public CustomDefaultFilterChainManager() {
        //构建过滤器
        setFilters(new LinkedHashMap<String, Filter>());
        //构建过滤器链
        setFilterChains(new LinkedHashMap<String, NamedFilterList>());
        //构建默认过滤器
        addDefaultFilters(true);
    }



    /**
     * @Description 注册我们自定义的过滤器，相当于ShiroFilterFactoryBean的filters属性
     * @param customFilters 过滤器
     * @return
     */
    public void setCustomFilters(Map<String, Filter> customFilters) {
        for(Map.Entry<String, Filter> entry : customFilters.entrySet()) {
            addFilter(entry.getKey(), entry.getValue(), false);
        }
    }


    /**
     * @Description Spring容器启动时调用
     */
    @PostConstruct
    public void init() {
        //配置默认过滤器
        Map<String, Filter> filters = getFilters();

        //为过滤器链配置全局URL处理属性
        for (Filter filter : filters.values()) {
            applyGlobalPropertiesIfNecessary(filter);
        }
    }

    /**
     * @Description 此时交于spring容器出事化，这里忽略
     */
    @Override
    protected void initFilter(Filter filter) {
    }

    private void applyGlobalPropertiesIfNecessary(Filter filter) {
        applyLoginUrlIfNecessary(filter);
        applySuccessUrlIfNecessary(filter);
        applyUnauthorizedUrlIfNecessary(filter);
    }

    private void applyLoginUrlIfNecessary(Filter filter) {
        String loginUrl = getLoginUrl();
        if (StringUtils.hasText(loginUrl) && (filter instanceof AccessControlFilter)) {
            AccessControlFilter acFilter = (AccessControlFilter) filter;
            //only apply the login url if they haven't explicitly configured one already:
            String existingLoginUrl = acFilter.getLoginUrl();
            if (AccessControlFilter.DEFAULT_LOGIN_URL.equals(existingLoginUrl)) {
                acFilter.setLoginUrl(loginUrl);
            }
        }
    }

    private void applySuccessUrlIfNecessary(Filter filter) {
        String successUrl = getSuccessUrl();
        if (StringUtils.hasText(successUrl) && (filter instanceof AuthenticationFilter)) {
            AuthenticationFilter authcFilter = (AuthenticationFilter) filter;
            //only apply the successUrl if they haven't explicitly configured one already:
            String existingSuccessUrl = authcFilter.getSuccessUrl();
            if (AuthenticationFilter.DEFAULT_SUCCESS_URL.equals(existingSuccessUrl)) {
                authcFilter.setSuccessUrl(successUrl);
            }
        }
    }

    private void applyUnauthorizedUrlIfNecessary(Filter filter) {
        String unauthorizedUrl = getUnauthorizedUrl();
        if (StringUtils.hasText(unauthorizedUrl) && (filter instanceof AuthorizationFilter)) {
            AuthorizationFilter authzFilter = (AuthorizationFilter) filter;
            //only apply the unauthorizedUrl if they haven't explicitly configured one already:
            String existingUnauthorizedUrl = authzFilter.getUnauthorizedUrl();
            if (existingUnauthorizedUrl == null) {
                authzFilter.setUnauthorizedUrl(unauthorizedUrl);
            }
        }
    }



    public String getLoginUrl() {
        return loginUrl;
    }

    public void setLoginUrl(String loginUrl) {
        this.loginUrl = loginUrl;
    }

    public String getSuccessUrl() {
        return successUrl;
    }

    public void setSuccessUrl(String successUrl) {
        this.successUrl = successUrl;
    }

    public String getUnauthorizedUrl() {
        return unauthorizedUrl;
    }

    public void setUnauthorizedUrl(String unauthorizedUrl) {
        this.unauthorizedUrl = unauthorizedUrl;
    }

}

CustomDefaultFilterChainManager：主要是把原来对象的创建交于spring容器，同时指定过滤器，然后构建过滤器链

package com.itheima.shiro.core.impl;

import org.apache.shiro.config.Ini;
import org.apache.shiro.util.CollectionUtils;
import org.apache.shiro.util.Nameable;
import org.apache.shiro.util.StringUtils;
import org.apache.shiro.web.config.IniFilterChainResolverFactory;
import org.apache.shiro.web.filter.AccessControlFilter;
import org.apache.shiro.web.filter.authc.AuthenticationFilter;
import org.apache.shiro.web.filter.authz.AuthorizationFilter;
import org.apache.shiro.web.filter.mgt.DefaultFilterChainManager;
import org.apache.shiro.web.filter.mgt.NamedFilterList;
import org.apache.shiro.web.filter.mgt.SimpleNamedFilterList;

import javax.annotation.PostConstruct;
import javax.servlet.Filter;
import javax.servlet.FilterChain;
import java.util.LinkedHashMap;
import java.util.List;
import java.util.Map;

/**
 * @Description：自定义默认过滤器管理者
 */
public class CustomDefaultFilterChainManager extends DefaultFilterChainManager {

    //登录地址
    private String loginUrl;

    //登录成功后默认跳转地址
    private String successUrl;

    //未授权跳转地址
    private String unauthorizedUrl;

    public CustomDefaultFilterChainManager() {
        //构建过滤器
        setFilters(new LinkedHashMap<String, Filter>());
        //构建过滤器链
        setFilterChains(new LinkedHashMap<String, NamedFilterList>());
        //构建默认过滤器
        addDefaultFilters(true);
    }



    /**
     * @Description 注册我们自定义的过滤器，相当于ShiroFilterFactoryBean的filters属性
     * @param customFilters 过滤器
     * @return
     */
    public void setCustomFilters(Map<String, Filter> customFilters) {
        for(Map.Entry<String, Filter> entry : customFilters.entrySet()) {
            addFilter(entry.getKey(), entry.getValue(), false);
        }
    }


    /**
     * @Description Spring容器启动时调用
     */
    @PostConstruct
    public void init() {
        //配置默认过滤器
        Map<String, Filter> filters = getFilters();
        if (!CollectionUtils.isEmpty(filters)) {
            //注册过滤器
            for (Map.Entry<String, Filter> entry : filters.entrySet()) {
                //过滤器名称
                String name = entry.getKey();
                //过滤器
                Filter filter = entry.getValue();
                if (filter instanceof Nameable) {
                    ((Nameable) filter).setName(name);
                }
                //配置3个URL
                applyGlobalPropertiesIfNecessary(filter);
            }
        }
    }

    /**
     * @Description 此时交于spring容器出事化，这里忽略
     */
    @Override
    protected void initFilter(Filter filter) {
    }

    private void applyGlobalPropertiesIfNecessary(Filter filter) {
        applyLoginUrlIfNecessary(filter);
        applySuccessUrlIfNecessary(filter);
        applyUnauthorizedUrlIfNecessary(filter);
    }

    private void applyLoginUrlIfNecessary(Filter filter) {
        String loginUrl = getLoginUrl();
        if (StringUtils.hasText(loginUrl) && (filter instanceof AccessControlFilter)) {
            AccessControlFilter acFilter = (AccessControlFilter) filter;
            //only apply the login url if they haven't explicitly configured one already:
            String existingLoginUrl = acFilter.getLoginUrl();
            if (AccessControlFilter.DEFAULT_LOGIN_URL.equals(existingLoginUrl)) {
                acFilter.setLoginUrl(loginUrl);
            }
        }
    }

    private void applySuccessUrlIfNecessary(Filter filter) {
        String successUrl = getSuccessUrl();
        if (StringUtils.hasText(successUrl) && (filter instanceof AuthenticationFilter)) {
            AuthenticationFilter authcFilter = (AuthenticationFilter) filter;
            //only apply the successUrl if they haven't explicitly configured one already:
            String existingSuccessUrl = authcFilter.getSuccessUrl();
            if (AuthenticationFilter.DEFAULT_SUCCESS_URL.equals(existingSuccessUrl)) {
                authcFilter.setSuccessUrl(successUrl);
            }
        }
    }

    private void applyUnauthorizedUrlIfNecessary(Filter filter) {
        String unauthorizedUrl = getUnauthorizedUrl();
        if (StringUtils.hasText(unauthorizedUrl) && (filter instanceof AuthorizationFilter)) {
            AuthorizationFilter authzFilter = (AuthorizationFilter) filter;
            //only apply the unauthorizedUrl if they haven't explicitly configured one already:
            String existingUnauthorizedUrl = authzFilter.getUnauthorizedUrl();
            if (existingUnauthorizedUrl == null) {
                authzFilter.setUnauthorizedUrl(unauthorizedUrl);
            }
        }
    }



    public String getLoginUrl() {
        return loginUrl;
    }

    public void setLoginUrl(String loginUrl) {
        this.loginUrl = loginUrl;
    }

    public String getSuccessUrl() {
        return successUrl;
    }

    public void setSuccessUrl(String successUrl) {
        this.successUrl = successUrl;
    }

    public String getUnauthorizedUrl() {
        return unauthorizedUrl;
    }

    public void setUnauthorizedUrl(String unauthorizedUrl) {
        this.unauthorizedUrl = unauthorizedUrl;
    }

}

# 【2.4.2】CustomPathMatchingFilterChainResolver

1582687131628


package org.apache.shiro.web.filter.mgt;

import javax.servlet.FilterChain;
import javax.servlet.ServletRequest;
import javax.servlet.ServletResponse;


public interface FilterChainResolver {

	//根据请求获得对应的过滤器链
    FilterChain getChain(ServletRequest request, ServletResponse response, FilterChain originalChain);

}

CustomPathMatchingFilterChainResolver

这里主要核心内容是：指定使用过滤器链管理器为自己定的过滤器管理器

package com.itheima.shiro.core.impl;

import org.apache.shiro.web.filter.mgt.FilterChainManager;
import org.apache.shiro.web.filter.mgt.PathMatchingFilterChainResolver;
import org.springframework.beans.factory.annotation.Autowired;

import javax.servlet.FilterChain;
import javax.servlet.ServletRequest;
import javax.servlet.ServletResponse;
import java.util.ArrayList;
import java.util.List;


public class CustomPathMatchingFilterChainResolver extends PathMatchingFilterChainResolver {

    private CustomDefaultFilterChainManager customDefaultFilterChainManager;

    public void setCustomDefaultFilterChainManager(CustomDefaultFilterChainManager customDefaultFilterChainManager) {
        this.customDefaultFilterChainManager = customDefaultFilterChainManager;
    }

    public CustomDefaultFilterChainManager getCustomDefaultFilterChainManager() {
        return customDefaultFilterChainManager;
    }

    @Override
    public FilterChain getChain(ServletRequest request, ServletResponse response, FilterChain originalChain) {
        //指定使用过滤器链管理器为自己定的过滤器管理器
        FilterChainManager filterChainManager = getCustomDefaultFilterChainManager();
        if (!filterChainManager.hasChains()) {
            return null;
        }

        String requestURI = getPathWithinApplication(request);

        List<String> chainNames = new ArrayList<String>();
        //the 'chain names' in this implementation are actually path patterns defined by the user.  We just use them
        //as the chain name for the FilterChainManager's requirements
        for (String pathPattern : filterChainManager.getChainNames()) {

            // If the path does match, then pass on to the subclass implementation for specific checks:
            if (pathMatches(pathPattern, requestURI)) {
                return filterChainManager.proxy(originalChain, pathPattern);
            }
        }
        return null;
    }
}

# 【2.4.3】CustomShiroFilterFactoryBean

1582688545621

protected AbstractShiroFilter createInstance() throws Exception {

        log.debug("Creating Shiro Filter instance.");

        SecurityManager securityManager = getSecurityManager();
        if (securityManager == null) {
            String msg = "SecurityManager property must be set.";
            throw new BeanInitializationException(msg);
        }

        if (!(securityManager instanceof WebSecurityManager)) {
            String msg = "The security manager does not implement the WebSecurityManager interface.";
            throw new BeanInitializationException(msg);
        }

        FilterChainManager manager = createFilterChainManager();

        //Expose the constructed FilterChainManager by first wrapping it in a
        // FilterChainResolver implementation. The AbstractShiroFilter implementations
        // do not know about FilterChainManagers - only resolvers:
        PathMatchingFilterChainResolver chainResolver = new PathMatchingFilterChainResolver();
        chainResolver.setFilterChainManager(manager);

        //Now create a concrete ShiroFilter instance and apply the acquired SecurityManager and built
        //FilterChainResolver.  It doesn't matter that the instance is an anonymous inner class
        //here - we're just using it because it is a concrete AbstractShiroFilter instance that accepts
        //injection of the SecurityManager and FilterChainResolver:
        return new SpringShiroFilter((WebSecurityManager) securityManager, chainResolver);
    }

ShiroFilterFactoryBean源码我们发现PathMatchingFilterChainResolver未暴露set方法，我们改写一下

package com.itheima.shiro.core.impl;

import org.apache.shiro.mgt.SecurityManager;
import org.apache.shiro.spring.web.ShiroFilterFactoryBean;
import org.apache.shiro.web.filter.mgt.FilterChainManager;
import org.apache.shiro.web.filter.mgt.FilterChainResolver;
import org.apache.shiro.web.filter.mgt.PathMatchingFilterChainResolver;
import org.apache.shiro.web.mgt.WebSecurityManager;
import org.apache.shiro.web.servlet.AbstractShiroFilter;
import org.springframework.beans.factory.BeanInitializationException;

/**
 * @Description：
 */
public class CustomShiroFilterFactoryBean extends ShiroFilterFactoryBean {

    PathMatchingFilterChainResolver chainResolver ;

    public void setChainResolver(PathMatchingFilterChainResolver chainResolver) {
        this.chainResolver = chainResolver;
    }

    @Override
    protected AbstractShiroFilter createInstance() throws Exception {


        SecurityManager securityManager = getSecurityManager();
        if (securityManager == null) {
            String msg = "SecurityManager property must be set.";
            throw new BeanInitializationException(msg);
        }

        if (!(securityManager instanceof WebSecurityManager)) {
            String msg = "The security manager does not implement the WebSecurityManager interface.";
            throw new BeanInitializationException(msg);
        }

        FilterChainManager manager = createFilterChainManager();


        chainResolver.setFilterChainManager(manager);

        //Now create a concrete ShiroFilter instance and apply the acquired SecurityManager and built
        //FilterChainResolver.  It doesn't matter that the instance is an anonymous inner class
        //here - we're just using it because it is a concrete AbstractShiroFilter instance that accepts
        //injection of the SecurityManager and FilterChainResolver:
        return new SpringShiroFilter((WebSecurityManager) securityManager, chainResolver);
    }

    private static final class SpringShiroFilter extends AbstractShiroFilter {

        protected SpringShiroFilter(WebSecurityManager webSecurityManager, FilterChainResolver resolver) {
            super();
            if (webSecurityManager == null) {
                throw new IllegalArgumentException("WebSecurityManager property cannot be null.");
            }
            setSecurityManager(webSecurityManager);
            if (resolver != null) {
                setFilterChainResolver(resolver);
            }
        }
    }
}

# 【2.4.4】ShiroConfig改造

package com.itheima.shiro.config;


import com.itheima.shiro.constant.SuperConstant;
import com.itheima.shiro.core.ShiroDbRealm;
import com.itheima.shiro.core.filter.*;
import com.itheima.shiro.core.impl.*;
import lombok.extern.log4j.Log4j2;
import org.apache.shiro.authc.credential.HashedCredentialsMatcher;
import org.apache.shiro.session.mgt.eis.SessionDAO;
import org.apache.shiro.spring.LifecycleBeanPostProcessor;
import org.apache.shiro.spring.security.interceptor.AuthorizationAttributeSourceAdvisor;
import org.apache.shiro.web.mgt.DefaultWebSecurityManager;
import org.apache.shiro.web.servlet.SimpleCookie;
import org.redisson.Redisson;
import org.redisson.api.RedissonClient;
import org.redisson.config.Config;
import org.springframework.aop.framework.autoproxy.DefaultAdvisorAutoProxyCreator;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.boot.context.properties.EnableConfigurationProperties;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.ComponentScan;
import org.springframework.context.annotation.Configuration;
import org.springframework.context.annotation.DependsOn;

import javax.servlet.Filter;
import java.util.HashMap;
import java.util.Map;

/**
 * @Description 权限配置类
 */
@Configuration
@ComponentScan(basePackages = {"com.itheima.shiro.core"})
@EnableConfigurationProperties({ShiroRedisProperties.class})
@Log4j2
public class ShiroConfig {

    @Autowired
    private ShiroRedisProperties shiroRedisProperties;

    @Autowired
    JwtTokenManager jwtTokenManager;

    /**
     * @Description redission客户端
     */
    @Bean("redissonClientForShiro")
    public RedissonClient redissonClient() {
        log.info("=====初始化redissonClientForShiro开始======");
        String[] nodeList = shiroRedisProperties.getNodes().split(",");
        Config config = new Config();
        if (nodeList.length == 1) {
            config.useSingleServer().setAddress(nodeList[0])
                    .setConnectTimeout(shiroRedisProperties.getConnectTimeout())
                    .setConnectionMinimumIdleSize(shiroRedisProperties.getConnectionMinimumidleSize())
                    .setConnectionPoolSize(shiroRedisProperties.getConnectPoolSize()).setTimeout(shiroRedisProperties.getTimeout());
        } else {
            config.useClusterServers().addNodeAddress(nodeList)
                    .setConnectTimeout(shiroRedisProperties.getConnectTimeout())
                    .setMasterConnectionMinimumIdleSize(shiroRedisProperties.getConnectionMinimumidleSize())
                    .setMasterConnectionPoolSize(shiroRedisProperties.getConnectPoolSize()).setTimeout(shiroRedisProperties.getTimeout());
        }
        RedissonClient redissonClient =  Redisson.create(config);
        log.info("=====初始化redissonClientForShiro完成======");
        return redissonClient;
    }

    /**
     * @Description 创建cookie对象
     */
    @Bean(name="sessionIdCookie")
    public SimpleCookie simpleCookie(){
        SimpleCookie simpleCookie = new SimpleCookie();
        simpleCookie.setName("ShiroSession");
        return simpleCookie;
    }

    /**
     * @Description 缓存管理器
     * @param
     * @return
     */
    @Bean(name="shiroCacheManager")
    public ShiroCacheManager shiroCacheManager(){
        return new ShiroCacheManager(shiroRedisProperties.getGlobalSessionTimeout());
    }

    /**
     * @Description 权限管理器
     * @param
     * @return
     */
    @Bean(name="securityManager")
    public DefaultWebSecurityManager defaultWebSecurityManager(){
        DefaultWebSecurityManager securityManager = new DefaultWebSecurityManager();
        securityManager.setRealm(shiroDbRealm());
        securityManager.setSessionManager(shiroSessionManager());
        securityManager.setCacheManager(shiroCacheManager());
        return securityManager;
    }

    /**
     * @Description 密码比较器
     */
    @Bean
    public HashedCredentialsMatcher hashedCredentialsMatcher (){
        RetryLimitCredentialsMatcher matcher = new RetryLimitCredentialsMatcher(SuperConstant.HASH_ALGORITHM);
        matcher.setHashIterations(SuperConstant.HASH_INTERATIONS);
        return matcher;
    }
    /**
     * @Description 自定义RealmImpl
     */
    @Bean(name="shiroDbRealm")
    public ShiroDbRealm shiroDbRealm(){
        ShiroDbRealm shiroDbRealm =new ShiroDbRealmImpl();
        shiroDbRealm.setCredentialsMatcher(hashedCredentialsMatcher());
        return shiroDbRealm;
    }


    /**
     * @Description 自定义session会话存储的实现类 ，使用Redis来存储共享session，达到分布式部署目的
     */
    @Bean("redisSessionDao")
    public SessionDAO redisSessionDao(){
        RedisSessionDao sessionDAO =   new RedisSessionDao();
        sessionDAO.setGlobalSessionTimeout(shiroRedisProperties.getGlobalSessionTimeout());
        return sessionDAO;
    }

    /**
     * @Description 会话管理器
     */
    @Bean(name="sessionManager")
    public ShiroSessionManager shiroSessionManager(){
        ShiroSessionManager sessionManager = new ShiroSessionManager();
        sessionManager.setSessionDAO(redisSessionDao());
        sessionManager.setSessionValidationSchedulerEnabled(false);
        sessionManager.setSessionIdCookieEnabled(true);
        sessionManager.setSessionIdCookie(simpleCookie());
        sessionManager.setGlobalSessionTimeout(shiroRedisProperties.getGlobalSessionTimeout());
        return sessionManager;
    }

    /**
     * @Description 保证实现了Shiro内部lifecycle函数的bean执行
     */
    @Bean(name = "lifecycleBeanPostProcessor")
    public static LifecycleBeanPostProcessor getLifecycleBeanPostProcessor() {
        return new LifecycleBeanPostProcessor();
    }

    /**
     * @Description AOP式方法级权限检查
     */
    @Bean
    @DependsOn("lifecycleBeanPostProcessor")
    public DefaultAdvisorAutoProxyCreator getDefaultAdvisorAutoProxyCreator() {
        DefaultAdvisorAutoProxyCreator defaultAdvisorAutoProxyCreator = new DefaultAdvisorAutoProxyCreator();
        defaultAdvisorAutoProxyCreator.setProxyTargetClass(true);
        return defaultAdvisorAutoProxyCreator;
    }

    /**
     * @Description 配合DefaultAdvisorAutoProxyCreator事项注解权限校验
     */
    @Bean
    public AuthorizationAttributeSourceAdvisor getAuthorizationAttributeSourceAdvisor() {
        AuthorizationAttributeSourceAdvisor aasa = new AuthorizationAttributeSourceAdvisor();
        aasa.setSecurityManager(defaultWebSecurityManager());
        return new AuthorizationAttributeSourceAdvisor();
    }

    /**
     * @Description 自定义拦截器定义
     */
    private Map<String, Filter> filters() {
        Map<String, Filter> map = new HashMap<String, Filter>();
        map.put("role-or", new RolesOrAuthorizationFilter());
        map.put("kicked-out", new KickedOutAuthorizationFilter(redissonClient(), redisSessionDao(), shiroSessionManager()));
        map.put("jwt-authc", new JwtAuthcFilter(jwtTokenManager));
        map.put("jwt-perms", new JwtPermsFilter());
        map.put("jwt-roles", new JwtRolesFilter());
        return map;
    }

    /**
     * @Description Shiro过滤器
     */
    @Bean("shiroFilter")
    public CustomShiroFilterFactoryBean shiroFilterFactoryBean(){
        CustomShiroFilterFactoryBean shiroFilter = new CustomShiroFilterFactoryBean();
        shiroFilter.setSecurityManager(defaultWebSecurityManager());
        shiroFilter.setChainResolver(filterChainResolver());
        return shiroFilter;
    }

    @Bean
    public CustomDefaultFilterChainManager defaultFilterChainManager(){
        CustomDefaultFilterChainManager filterChainManager = new CustomDefaultFilterChainManager();
        filterChainManager.setLoginUrl("/login");
        filterChainManager.setUnauthorizedUrl("/login");
        filterChainManager.setCustomFilters(filters());
        return filterChainManager;
    }

    @Bean
    CustomPathMatchingFilterChainResolver filterChainResolver(){
        CustomPathMatchingFilterChainResolver pathMatchingFilterChainResolver = new CustomPathMatchingFilterChainResolver();
        pathMatchingFilterChainResolver.setCustomDefaultFilterChainManager(defaultFilterChainManager());
        return pathMatchingFilterChainResolver;
    }

}

# 5、shiro-client客户端

shiro-client作为jar的依赖，满足以下需求：

1、非侵入式：使用者只需要对jar依赖和做少量的配置，就可以达到统一鉴权的目标

2、可扩展性：用户除使用提供的过滤器外，可以轻松安自己的业务区定义过滤器

3、集中式管理：依赖jar之后，shiro-mgt后台可以同时管控多个平台的权限的认证、鉴权、及动态配置过滤器链

# 【1】模块依赖关系

1582688991837

# 【2】原理分析

springboot-shiro-framework-client项目向上继承了springboot-shiro-framework-core项目，springboot-shiro-framework-core是主要实现认证、鉴权、过滤器定义、会话统一、realm缓存的核心项目。

springboot-shiro-framework-client项目以jar的方式被需要做权限控制的gateway项目所依赖，再由gateway通过对springboot-shiro-producer的dubbo消费，以达到统一认证、鉴权

springboot-shiro-framework-client模块实现了springboot-shiro-framework-core接口的3个类：

UserBridgeServiceImpl:提供用户基本资源操作的业务实现
FilterChainBridgeServiceImpl:提供过滤器链接口的查询
ResourceBridgeServiceImpl:提供资源查询

UserBridgeServiceImpl

package com.itheima.shiro.client;

import com.itheima.shiro.constant.CacheConstant;
import com.itheima.shiro.core.SimpleCacheManager;
import com.itheima.shiro.core.base.ShiroUser;
import com.itheima.shiro.core.base.SimpleMapCache;
import com.itheima.shiro.core.base.SimpleToken;
import com.itheima.shiro.core.bridge.UserBridgeService;
import com.itheima.shiro.face.UserAdapterFace;
import com.itheima.shiro.utils.BeanConv;
import com.itheima.shiro.utils.EmptyUtil;
import com.itheima.shiro.utils.ShiroUserUtil;
import com.itheima.shiro.vo.ResourceVo;
import com.itheima.shiro.vo.RoleVo;
import com.itheima.shiro.vo.UserVo;
import lombok.extern.slf4j.Slf4j;
import org.apache.dubbo.config.annotation.Reference;
import org.apache.shiro.authc.AuthenticationInfo;
import org.apache.shiro.authc.AuthenticationToken;
import org.apache.shiro.authc.SimpleAuthenticationInfo;
import org.apache.shiro.authc.UnknownAccountException;
import org.apache.shiro.authz.SimpleAuthorizationInfo;
import org.apache.shiro.util.ByteSource;
import org.redisson.api.RBucket;
import org.redisson.api.RedissonClient;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Component;

import java.util.ArrayList;
import java.util.HashMap;
import java.util.List;
import java.util.Map;
import java.util.concurrent.TimeUnit;


/**
 * @Description 权限桥接器
 */
@Slf4j
@Component("userBridgeService")
public class UserBridgeServiceImpl implements UserBridgeService {

    @Reference(version = "1.0.0")
    private UserAdapterFace userAdapterFace;

    @Autowired
    private SimpleCacheManager simpleCacheManager;

    @javax.annotation.Resource(name = "redissonClientForShiro")
    private RedissonClient redissonClient;

    public AuthenticationInfo doGetAuthenticationInfo(AuthenticationToken authcToken,String realmName) {
        SimpleToken token = (SimpleToken)authcToken;
        UserVo user  = this.findUserByLoginName(token.getUsername());
        if(EmptyUtil.isNullOrEmpty(user)){
            throw new UnknownAccountException("账号不存在");
        }
        ShiroUser shiroUser = BeanConv.toBean(user, ShiroUser.class);
        String sessionId = ShiroUserUtil.getShiroSessionId();
        String cacheKeyResourcesIds = CacheConstant.RESOURCES_KEY_IDS+sessionId;
        shiroUser.setResourceIds(this.findResourcesIdsList(cacheKeyResourcesIds,user.getId()));
        String salt = user.getSalt();
        String password = user.getPassWord();
        return new SimpleAuthenticationInfo(shiroUser, password, ByteSource.Util.bytes(salt), realmName);
    }

    @Override
    public SimpleAuthorizationInfo getAuthorizationInfo(ShiroUser shiroUser) {
        UserVo user = BeanConv.toBean(shiroUser, UserVo.class);
        SimpleAuthorizationInfo info = new SimpleAuthorizationInfo();
        String sessionId = ShiroUserUtil.getShiroSessionId();
        //查询用户拥有的角色
        String cacheKeyRole = CacheConstant.ROLE_KEY + sessionId;
        info.addRoles(this.findRoleList(cacheKeyRole, user.getId()));

        //查询用户拥有的资源
        String cacheKeyResources = CacheConstant.RESOURCES_KEY + sessionId;
        info.addStringPermissions(this.findResourcesList(cacheKeyResources, user.getId()));
        return info;
    }


    @Override
    public List<String> findRoleList(String cacheKeyRole, String userId) {
        List<RoleVo> roles = new ArrayList<RoleVo>();
        if (simpleCacheManager.getCache(cacheKeyRole) != null) {
            roles = (List<RoleVo>) simpleCacheManager.getCache(cacheKeyRole).get(cacheKeyRole);
        } else {
            roles = userAdapterFace.findRoleByUserId(userId);
            if (roles.size() > 0) {
                //用户角色存放到map
                Map<Object, Object> mapRole = new HashMap<Object, Object>();
                mapRole.put(cacheKeyRole, roles);
                //新建SimpleMapCache实例并放入缓存管理器
                SimpleMapCache cacheRole = new SimpleMapCache(cacheKeyRole, mapRole);
                simpleCacheManager.createCache(cacheKeyRole, cacheRole);
            }
        }
        List<String> rolesLabel = new ArrayList<String>();
        for (RoleVo role : roles) {
            rolesLabel.add(role.getLabel());
        }
        return rolesLabel;
    }


    @Override
    public List<String> findResourcesList(String cacheKeyResources,String userId) {
        List<ResourceVo> resourcesList = new ArrayList<ResourceVo>();
        if (simpleCacheManager.getCache(cacheKeyResources) != null) {
            resourcesList = (List<ResourceVo>) simpleCacheManager.getCache(cacheKeyResources).get(cacheKeyResources);
        } else {
            resourcesList = userAdapterFace.findResourceByUserId(userId);
            if (resourcesList.size() > 0) {
                //用户资源存放到map
                Map<Object, Object> mapResource = new HashMap<Object, Object>();
                mapResource.put(cacheKeyResources, resourcesList);
                //新建SimpleMapCache实例并放入缓存管理器
                SimpleMapCache cacheResource = new SimpleMapCache(cacheKeyResources, mapResource);
                simpleCacheManager.createCache(cacheKeyResources, cacheResource);
            }
        }
        List<String> resourcesLabel = new ArrayList<String>();
        for (ResourceVo resources : resourcesList) {
            resourcesLabel.add(resources.getLabel());
        }
        return resourcesLabel;
    }


    @Override
    public UserVo findUserByLoginName(String loginName) {
        String key = CacheConstant.FIND_USER_BY_LOGINNAME+loginName;
        RBucket<UserVo> rBucket = redissonClient.getBucket(key);
        UserVo user = rBucket.get();
        if (!EmptyUtil.isNullOrEmpty(user)) {
            return user;
        }else {
            user = userAdapterFace.findUserByLoginName(loginName);
            if (!EmptyUtil.isNullOrEmpty(user)) {
                rBucket.set(user, 300, TimeUnit.SECONDS);
                return user;
            }
        }
        rBucket.set(new UserVo(), 3, TimeUnit.SECONDS);
        return null;
    }

    @Override
    public List<String> findResourcesIdsList(String cacheKeyResources,String userId) {
        List<ResourceVo> resourcesList = new ArrayList<ResourceVo>();
        if (simpleCacheManager.getCache(cacheKeyResources) != null) {
            resourcesList = (List<ResourceVo>) simpleCacheManager.getCache(cacheKeyResources).get(cacheKeyResources);
        } else {
            resourcesList = userAdapterFace.findResourceByUserId(userId);
            if (resourcesList.size() > 0) {
                //用户资源存放到map
                Map<Object, Object> mapResource = new HashMap<Object, Object>();
                mapResource.put(cacheKeyResources, resourcesList);
                //新建SimpleMapCache实例并放入缓存管理器
                SimpleMapCache cacheResource = new SimpleMapCache(cacheKeyResources, mapResource);
                simpleCacheManager.createCache(cacheKeyResources, cacheResource);
            }
        }
        List<String> resourcesLabel = new ArrayList<String>();
        for (ResourceVo resources : resourcesList) {
            resourcesLabel.add(resources.getId());
        }
        return resourcesLabel;
    }

    @Override
    public void loadUserAuthorityToCache(ShiroUser user) {
        String sessionId = user.getSessionId();
        List<RoleVo> roles = userAdapterFace.findRoleByUserId(user.getId());
        //创建角色cachaeKey
        String cacheKeyRole = CacheConstant.ROLE_KEY + sessionId;
        //用户角色存放到map
        Map<Object, Object> mapRole = new HashMap<Object, Object>();
        mapRole.put(cacheKeyRole, roles);
        //新建SimpleMapCache实例并放入缓存管理器
        SimpleMapCache cacheRole = new SimpleMapCache(cacheKeyRole, mapRole);
        simpleCacheManager.createCache(cacheKeyRole, cacheRole);

        List<ResourceVo> resourcesList = userAdapterFace.findResourceByUserId(user.getId());
        if (resourcesList.size() > 0) {
            //创建资源cachaeKey
            String cacheKeyResources = CacheConstant.RESOURCES_KEY + sessionId;
            //用户资源存放到map
            Map<Object, Object> mapResource = new HashMap<Object, Object>();
            mapResource.put(cacheKeyResources, resourcesList);
            //新建SimpleMapCache实例并放入缓存管理器
            SimpleMapCache cacheResource = new SimpleMapCache(cacheKeyResources, mapResource);
            simpleCacheManager.createCache(cacheKeyResources, cacheResource);
        }
    }
}

FilterChainBridgeServiceImpl

package com.itheima.shiro.client;

import com.itheima.shiro.core.bridge.FilterChainBridgeService;
import com.itheima.shiro.face.FilterChainFace;
import com.itheima.shiro.vo.FilterChainVo;
import org.apache.dubbo.config.annotation.Reference;
import org.springframework.stereotype.Component;

import java.util.List;

/**
 * @Description：过滤器链查询
 */
@Component("filterChainBridgeService")
public class FilterChainBridgeServiceImpl implements FilterChainBridgeService {

    @Reference(version = "1.0.0")
    private FilterChainFace filterChainFace;


    @Override
    public List<FilterChainVo> findFilterChainList() {

        return filterChainFace.findFilterChainList();
    }
}

ResourceBridgeServiceImpl

package com.itheima.shiro.client;

import com.itheima.shiro.core.bridge.ResourceBridgeService;
import com.itheima.shiro.face.ResourceAdapterFace;
import com.itheima.shiro.vo.ResourceVo;
import org.apache.dubbo.config.annotation.Reference;
import org.springframework.beans.factory.annotation.Value;
import org.springframework.stereotype.Component;

import java.util.List;

/**
 * @Description：查询资源
 */
@Component("resourceBridgeService")
public class ResourceBridgeServiceImpl implements ResourceBridgeService {

    @Value("${itheima.resource.systemcode}")
    private String systemCode;

    @Reference(version = "1.0.0")
    ResourceAdapterFace resourceAdapterFace;

    @Override
    public List<ResourceVo> findValidResourceVoAll(String systemCode) {
        return resourceAdapterFace.findValidResourceVoAll(systemCode);
    }
}

从中我们可以看到3个类调用了springboot-shiro-handler中提供的dubbo鉴权服务化内容

# 6、shiro-gateway网关

# 【1】原理分析

1582880165581

1、依赖springboot-shiro-framework-client实现认证、鉴权、过滤器定义、会话统一、realm缓存等功能

2、springboot-shiro-mgt管理后台持久化网关资源

3、springboot-shiro-handler实现网关资源查询服务化

4、gateway-service依据持久化的网关资源，动态创建消费端服务

# 【2】代码实现

# 【2.1】网关资源持久化

这里在原有资源的基础上，增加的网关资源的管理：

	1、定义网关systemcode，用以区分不同网关系统

	2、定义访问的路径

	3、定义资源的唯一标识，作为权限控制的标识

	4、定义业务端dubbo服务端接口、目标方法、传入阐述、轮训算法、超时时间、重试次数等参数，这些内容会在gateway-service项目中解析

1582704703769

# 【2.2】网关资源服务化

ResourceAdapterFace:网关资源服务接口
ResourceAdapterFaceImpl:网关资源服务接口实现

ResourceBridgeService:网关资源桥接器接口
ResourceBridgeServiceImpl:网关资源桥接器接口实现

ResourceAdapterFace

package com.itheima.shiro.face;

import com.itheima.shiro.vo.ResourceVo;

import java.util.List;

/**
 * @Description：网关资源服务接口
 */
public interface ResourceAdapterFace {

    /**
     * @Description 获得当前系统是由有效的dubbo的资源
     */
    List<ResourceVo> findValidResourceVoAll(String systemCode);
}

ResourceAdapterFaceImpl

package com.itheima.shiro.faceImpl;

import com.itheima.shiro.face.ResourceAdapterFace;
import com.itheima.shiro.pojo.Resource;
import com.itheima.shiro.service.ResourceService;
import com.itheima.shiro.utils.BeanConv;
import com.itheima.shiro.utils.EmptyUtil;
import com.itheima.shiro.vo.ResourceVo;
import org.apache.dubbo.config.annotation.Service;
import org.springframework.beans.factory.annotation.Autowired;

import java.util.List;

/**
 * @Description：网关资源服务接口实现
 */
@Service(version = "1.0.0", retries = 3,timeout = 5000)
public class ResourceAdapterFaceImpl implements ResourceAdapterFace {

    @Autowired
    ResourceService resourceService;

    @Override
    public List<ResourceVo> findValidResourceVoAll(String systemCode) {
        List<Resource> resourceList =  resourceService.findValidResourceVoAll(systemCode);
        if (!EmptyUtil.isNullOrEmpty(resourceList)){
            return BeanConv.toBeanList(resourceList, ResourceVo.class);
        }
        return  null;
    }
}

ResourceBridgeService

package com.itheima.shiro.core.bridge;

import com.itheima.shiro.vo.ResourceVo;

import java.util.List;

/**
 * @Description：网关资源桥接器接口
 */
public interface ResourceBridgeService {

    /**
     * @Description 查询当前系统所有有效的DUBBO类型的服务
     * @param systemCode 系统编号：与mgt添加系统编号相同
     * @return
     */
    public List<ResourceVo> findValidResourceVoAll(String systemCode);
}

ResourceBridgeServiceImpl

package com.itheima.shiro.client;

import com.itheima.shiro.core.bridge.ResourceBridgeService;
import com.itheima.shiro.face.ResourceAdapterFace;
import com.itheima.shiro.vo.ResourceVo;
import org.apache.dubbo.config.annotation.Reference;
import org.springframework.beans.factory.annotation.Value;
import org.springframework.stereotype.Component;

import java.util.List;

/**
 * @Description：网关资源桥接器接口实现
 */
@Component("resourceBridgeService")
public class ResourceBridgeServiceImpl implements ResourceBridgeService {

    @Value("${itheima.resource.systemcode}")
    private String systemCode;

    @Reference(version = "1.0.0")
    ResourceAdapterFace resourceAdapterFace;

    @Override
    public List<ResourceVo> findValidResourceVoAll(String systemCode) {
        return resourceAdapterFace.findValidResourceVoAll(systemCode);
    }
}

# 【2.3】动态消费端

1582882166870

CacheWare:缓存仓库

CacheWareService:缓存仓库服务接口
CacheWareServiceImpl:缓存仓库服务接口实现

CacheWareSyncService:缓存仓库同步服务接口
CacheWareSyncServiceImpl:缓存仓库同步服务接口实现

LoginAction:登录相应接口
GateWayController:相应层的统一入口

# 【2.3.1】CacheWareService

其主要负责：

1、缓存的清除

2、向map容器中创建缓存

3、获得缓存仓库执行对象

package com.itheima.shiro.cache;

import com.google.common.collect.Multimap;
import com.itheima.shiro.pojo.CacheWare;

/**
 * @Description：缓存仓库服务
 */
public interface CacheWareService {

    /**
     * @Description 清除缓存
     */
    void clearCacheWare();

    /**
     * @Description 向map容器中创建缓存
     * @param CacheWareMap
     */
    void createCacheWare(Multimap<String, CacheWare> CacheWareMap);

    /**
     * @Description 获得缓存仓库执行对象
     * @param serviceName 服务名
     * @param methodName  方法名
     * @return {@link CacheWare}
     *
     */
    CacheWare queryCacheWare(String serviceName, String methodName);


}

CacheWareServiceImpl

package com.itheima.shiro.cache.impl;

import com.google.common.collect.ArrayListMultimap;
import com.google.common.collect.Multimap;
import com.itheima.shiro.cache.CacheWareService;
import com.itheima.shiro.pojo.CacheWare;
import com.itheima.shiro.utils.EmptyUtil;
import org.springframework.stereotype.Service;

import java.util.Collection;
import java.util.concurrent.locks.ReentrantLock;

/**
 * @Description：
 */
@Service("cacheWareService")
public class CacheWareServiceImpl implements CacheWareService {

    private Multimap<String, CacheWare> cacheWareMaps = ArrayListMultimap.create();

    /**
     * 数据锁
     */
    private static ReentrantLock reentrantLock = new ReentrantLock();


    @Override
    public void clearCacheWare() {
        try {
            reentrantLock.lock();
            cacheWareMaps.clear();
        } finally {
            reentrantLock.unlock();
        }
    }


    @Override
    public void createCacheWare(Multimap<String, CacheWare> CacheWareMap) {
        try {
            reentrantLock.lock();
            this.cacheWareMaps = CacheWareMap;
        } finally {
            reentrantLock.unlock();
        }
    }

    @Override
    public CacheWare queryCacheWare(String serviceName, String methodName) {
        if (EmptyUtil.isNullOrEmpty(serviceName) || EmptyUtil.isNullOrEmpty(serviceName)) {
            return null;
        }
        StringBuffer serviceNameStringBuffer = new StringBuffer(serviceName);
        StringBuffer methodNameStringBuffer = new StringBuffer(methodName);
        String key = serviceNameStringBuffer.append(":").append(methodName).toString();
        Collection<CacheWare> cacheWares = cacheWareMaps.get(key);
        return EmptyUtil.isNullOrEmpty(cacheWares) ? null : cacheWares.iterator().next();
    }

}

# 【2.3.2】CacheWareSyncService

其主要职责：

1、启动时、调用CacheWareService的创建缓存方法初始化缓存仓库

2、同步缓存仓库

3、网关资源转化缓存仓库可执行对象

4、从dubbo中，初始化代理对象

注意：为了在多个网关系统下，接口转换的无干扰，读取的只是本网关所对应的资源

package com.itheima.shiro.cache;

import com.itheima.shiro.pojo.CacheWare;
import com.itheima.shiro.vo.ResourceVo;

/**
 * @Description：缓存仓库同步刷新
 */
public interface CacheWareSyncService {

    /**
     * @Description 初始化缓存仓库
     */
    void initCacheWare();

    /**
     * @Description 同步缓存仓库
     */
    void refreshCacheWare();

    /**
     * @Description 资源转换缓存仓库对象
     */
    CacheWare resourceConvCacheWare(ResourceVo resource);

    /**
     * @Description 初始化代理对象
     * @param interfaceClass 接口
     * @param loadbalance 算法
     * @param version 版本
     * @param timeout 超时时间
     * @param retries 重试次数
     */
    Object initProxy(Class<?> interfaceClass,
                     String loadbalance,
                     String version,
                     Integer timeout,
                     Integer retries);

    /**
     * @Description 回收资源
     */
    void destoryCacheWare();
}

CacheWareSyncServiceImpl

package com.itheima.shiro.cache.impl;

import com.google.common.collect.ArrayListMultimap;
import com.google.common.collect.Multimap;
import com.itheima.shiro.cache.CacheWareService;
import com.itheima.shiro.cache.CacheWareSyncService;
import com.itheima.shiro.core.bridge.ResourceBridgeService;
import com.itheima.shiro.face.ResourceAdapterFace;
import com.itheima.shiro.pojo.CacheWare;
import com.itheima.shiro.utils.EmptyUtil;
import com.itheima.shiro.vo.ResourceVo;
import lombok.extern.log4j.Log4j2;
import org.apache.dubbo.config.ApplicationConfig;
import org.apache.dubbo.config.ReferenceConfig;
import org.apache.dubbo.config.RegistryConfig;
import org.apache.dubbo.config.annotation.Reference;
import org.apache.dubbo.config.utils.ReferenceConfigCache;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.beans.factory.annotation.Value;
import org.springframework.stereotype.Service;
import org.springframework.util.CollectionUtils;

import javax.annotation.PostConstruct;
import javax.annotation.PreDestroy;
import java.lang.reflect.Method;
import java.util.List;
import java.util.concurrent.Executors;
import java.util.concurrent.ScheduledExecutorService;
import java.util.concurrent.TimeUnit;

/**
 * @Description：
 */
@Service("cacheWareSyncService")
@Log4j2
public class CacheWareSyncServiceImpl implements CacheWareSyncService {

    @Value("${itheima.resource.systemcode}")
    private String systemCode;

    @Autowired
    ResourceBridgeService resourceBridgeService;

    @Autowired
    CacheWareService cacheWareService;

    @Autowired
    private ApplicationConfig applicationConfig;

    @Autowired
    private RegistryConfig registryConfig;

    private ScheduledExecutorService executor = Executors.newScheduledThreadPool(1);


    @Override
    @PostConstruct
    public void initCacheWare() {
        executor.scheduleAtFixedRate(new Runnable() {
            @Override
            public void run() {
                try {
                    refreshCacheWare();
                } catch (Exception e) {
                    log.error(e.getMessage(), e);
                }
            }
        }, 0, 2, TimeUnit.MINUTES);
    }

    @Override
    public void refreshCacheWare()  {
        List<ResourceVo> resources = resourceBridgeService.findValidResourceVoAll(systemCode);
        //如果当前系统没有资源，则清空
        if (CollectionUtils.isEmpty(resources)) {
            log.warn("No apis can be used.");
            cacheWareService.clearCacheWare();
            return;
        }
        //构建执行集合
        Multimap<String, CacheWare> cacheWareMaps = ArrayListMultimap.create();
        for (ResourceVo resource : resources) {
            if (EmptyUtil.isNullOrEmpty(resource.getServiceName())
            ||EmptyUtil.isNullOrEmpty(resource.getMethodName())){
                log.warn("{} not found serviceName or methodName",resources.toString());
                continue;
            }
            CacheWare cacheWare = resourceConvCacheWare(resource);
            if (!EmptyUtil.isNullOrEmpty(cacheWare)){
                cacheWareMaps.put(cacheWare.getServiceName()+":"+cacheWare.getMethodName(), cacheWare);
            }
        }
        cacheWareService.createCacheWare(cacheWareMaps);
    }

    @Override
    public CacheWare resourceConvCacheWare(ResourceVo resource)  {
        //获得类型
        Class<?> serviceClass = null;
        try {
            serviceClass = Class.forName(resource.getServiceName());
        } catch (ClassNotFoundException e) {
            log.error("容器中未发现：{}接口类",resource.getServiceName());
            return null;
        }
        String serviceName = resource.getServiceName().substring(resource.getServiceName().lastIndexOf(".")+1).toLowerCase();
        Method[] methods = serviceClass.getDeclaredMethods();
        Method methodTarget = null;
        //获得方法
        for (Method method : methods) {
            if (method.getName().equals(resource.getMethodName())) {
                methodTarget = method;
                break;
            }
        }
        // 未在接口类中找到方法
        if (methodTarget == null) {
            log.warn("{} not found in {}", resource.getMethodName(), resource.getServiceName());
            return null;
        }
        //获得方法上的参数
        Class<?>[] methodParamsClasss = methodTarget.getParameterTypes();
        Class<?> methodParamClasssTarget = null;
        for (Class<?> methodParamsClass : methodParamsClasss) {
            if (methodParamsClass.getName().equals(resource.getMethodParam())) {
                methodParamClasssTarget = methodParamsClass;
                break;
            }
        }
        //初始化代理类
        Object proxy = initProxy(serviceClass, resource.getLoadbalance(), resource.getDubboVersion(), resource.getTimeout(), resource.getRetries());
        if (proxy == null) {
            log.warn("{} not found in proxy", resource.getServiceName());
            return null;
        }
       	//构建CacheWare对象
        CacheWare cacheWare = CacheWare.builder()
                .serviceName(serviceName)
                .methodName(resource.getMethodName())
                .method(methodTarget)
                .methodParamsClass(methodParamClasssTarget)
                .proxy(proxy)
                .build();
        return cacheWare;
    }

    @Override
    public Object initProxy(Class<?> interfaceClass,
                            String loadbalance,
                            String version,
                            Integer timeout,
                            Integer retries) {
        ReferenceConfig<Object> reference = new ReferenceConfig<Object>();
        reference.setApplication(applicationConfig);
        reference.setRegistry(registryConfig);
        reference.setLoadbalance(EmptyUtil.isNullOrEmpty(loadbalance)?"random":loadbalance);
        reference.setInterface(interfaceClass);
        reference.setVersion(version);
        reference.setTimeout(EmptyUtil.isNullOrEmpty(timeout)?20000:timeout);
        reference.setCheck(false);
        reference.setRetries(EmptyUtil.isNullOrEmpty(retries)?0:retries);
        ReferenceConfigCache cache = ReferenceConfigCache.getCache();
        return cache.get(reference);
    }

    @Override
    @PreDestroy
    public void destoryCacheWare() {
        executor.shutdownNow();
    }
}

# 【2.4】网关资源解析

其主要负责：

1、传入参数处理

2、获得可执行缓存仓库

3、执行远程服务

4、处理返回结果

package com.itheima.shiro.web;

import com.alibaba.fastjson.JSON;
import com.alibaba.fastjson.JSONObject;
import com.itheima.shiro.base.BaseRequest;
import com.itheima.shiro.cache.CacheWareService;
import com.itheima.shiro.constant.GateWayConstant;
import com.itheima.shiro.pojo.CacheWare;
import com.itheima.shiro.response.MultiResponse;
import com.itheima.shiro.response.PageResponse;
import com.itheima.shiro.response.SingleResponse;
import com.itheima.shiro.utils.EmptyUtil;
import com.itheima.shiro.view.JsonResult;
import lombok.extern.log4j.Log4j2;
import org.springframework.beans.BeanUtils;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.*;

import javax.servlet.http.HttpServletRequest;
import javax.websocket.server.PathParam;
import java.lang.reflect.Method;

/**
 * @Description：网关统一入口
 */
@Controller
@Log4j2
public class GateWayController {

    @Autowired
    CacheWareService cacheWareService;


    @RequestMapping(value = "{serviceName}/{methodName}", method = RequestMethod.POST)
    @ResponseBody
    public JsonResult postGateWay(@PathVariable("serviceName") String serviceName,
                                  @PathVariable("methodName") String methodName,
                                  @RequestBody BaseRequest baseRequest) throws Exception {
        Object datas = baseRequest.getDatas();
        JsonResult jsonResult = null;
        if (EmptyUtil.isNullOrEmpty(serviceName)||EmptyUtil.isNullOrEmpty(methodName)){
            jsonResult = JsonResult.builder()
                    .result(GateWayConstant.FAIL)
                    .msg("参数缺失")
                    .code(GateWayConstant.PARAMETERS_MISSING)
                    .build();
            return jsonResult;
        }
        //1、传入参数处理
        JSONObject datasJson = null;
        if (!EmptyUtil.isNullOrEmpty(datas)){
            datasJson = JSONObject.parseObject(JSONObject.toJSONString(datas));
        }
        //2、获得可执行缓存仓库可执行对象
        CacheWare cacheWare = cacheWareService.queryCacheWare(serviceName, methodName);
        if (EmptyUtil.isNullOrEmpty(serviceName)||EmptyUtil.isNullOrEmpty(methodName)){
            jsonResult = JsonResult.builder()
                    .result(GateWayConstant.FAIL)
                    .msg("请求链接异常")
                    .code(GateWayConstant.URL_MISSING)
                    .build();
            return jsonResult;
        }
        //3、执行远程服务
        Object proxy = cacheWare.getProxy();
        Method method = cacheWare.getMethod();
        Class<?> methodParamsClass = cacheWare.getMethodParamsClass();
        Object result;
        if (EmptyUtil.isNullOrEmpty(methodParamsClass)){
            result = method.invoke(proxy);
        }else {
            Object arguments = JSONObject.toJavaObject(datasJson, methodParamsClass);
            result = method.invoke(proxy,arguments);
        }
        //4、处理返回结果
        return convResult(result);
    }

    /**
     * @Description 处理请求结果
     */
    private JsonResult convResult(Object result) {
        JsonResult jsonResult = JsonResult.builder()
                .result(GateWayConstant.SUCCEED)
                .msg("相应正常")
                .code(GateWayConstant.SUCCEED_CODE)
                .build();
        if (EmptyUtil.isNullOrEmpty(result)) {
            jsonResult = JsonResult.builder()
                    .result(GateWayConstant.FAIL)
                    .msg("返回结果为空")
                    .code(GateWayConstant.RESULT_ISNULLOREMPTY)
                    .build();
            return jsonResult;
        }
        if (result instanceof SingleResponse) {
            BeanUtils.copyProperties(result, jsonResult);
            @SuppressWarnings("rawtypes")
            SingleResponse singleResponse = (SingleResponse) result;
            jsonResult.setDatas(singleResponse.getValue());
        } else if (result instanceof MultiResponse) {
            BeanUtils.copyProperties(result, jsonResult);
            @SuppressWarnings("rawtypes")
            MultiResponse multiResponse = (MultiResponse) result;
            jsonResult.setDatas(multiResponse.getValues());
        } else if (result instanceof PageResponse) {
            BeanUtils.copyProperties(result, jsonResult);
            PageResponse pageResponse = (PageResponse)result;
            jsonResult.setDatas( pageResponse.getValues());
        } else {
            jsonResult = JsonResult.builder()
                    .result(GateWayConstant.FAIL)
                    .msg("返回结果格式不正确")
                    .code(GateWayConstant.RESULT_MISSING)
                    .build();
            return jsonResult;
        }
        return jsonResult;
    }
}

# 7、shiro-mgt管理平台

# 【1】模块依赖关系

1582881763304

# 【2】原理分析

	通过上面的模块依赖关系，我们可以看出，shiro-mgt管理平台也是依赖springboot-shiro-framework-client项目实现权限的校验，而他本身主要是负责对角色、资源、用户、过滤器链的CRUD，来实现各个网关平台的权限控制。

资源：

1582704703769

1、定义了网关systemcode，用以区分不同网关、系统

2、定义了访问的路径

3、定义了资源的唯一标识，作为过滤器过滤的标记

4、定义dubbo服务端接口的解析、同时为每个服务定义：轮训算法、超时时间、重试次数等参数，这些参数会在shiro-gateway中解析

角色：

1582704738045

1、定义角色的唯一标识，作为过滤器过滤的标记

2、为角色定义多个资源

用户：

1582704772681

1、用户基本信息

2、为用户定义多个角色

过滤器链：

1582704833744

1、为所有系统定义统一的过滤器链路管理（可以扩展：按资源类型那样为每个网关系统定义过滤器链）

2、保证过滤器器链的有序性

上次更新: 2025/03/09, 18:29:07

← Springboot+Shiro+Jwt前后端分离鉴权快速入门→
